Câu 183: 200-310: Designing for Cisco Internetwork Solutions

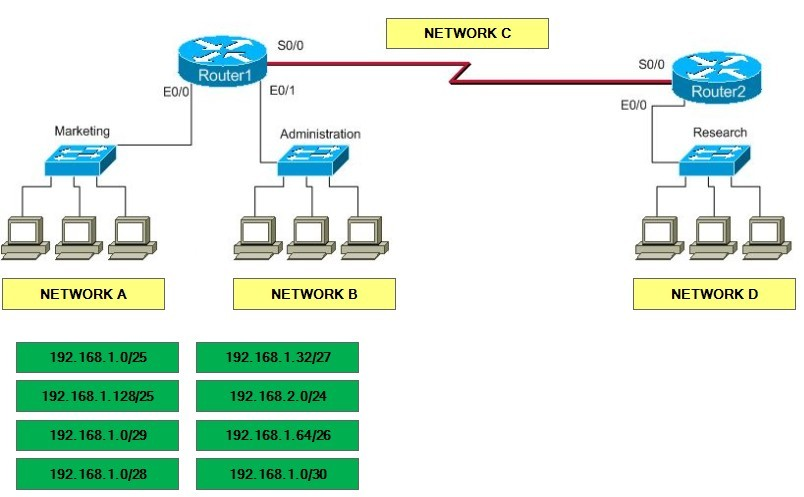

DRAG DROP -You are implementing a new two-office network. The Administration and Marketing staff will reside at the first office. The Research department will have the sole use of the second office. Each department's computers will reside on separate subnets. The company does not intend to hire any new employees in the near future, so your supervisor has instructed you to conserve IP address space. The Marketing department requires 25 hosts, and the Administration department requires 55 hosts The Research department must accommodate 110 hosts. In the network diagram displayed below, drag the appropriate network addresses into their correct locations. Not all addresses will be used. Select and Place:

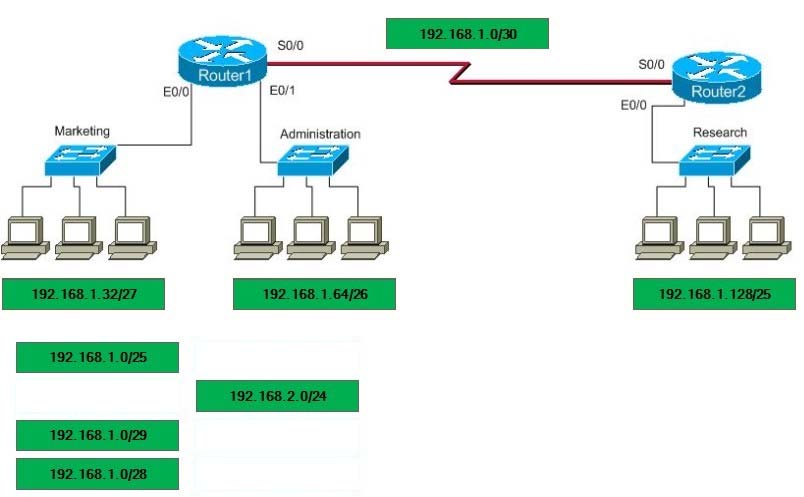

1. A. Lựa chọn A bằng hình ảnh — đáp án hiện tại
