Câu 69: 200-310: Designing for Cisco Internetwork Solutions

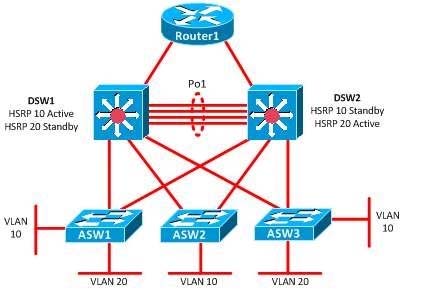

View the Exhibit. Refer to the exhibit above. PVST+ has been configured. DSW1 is the root bridge for all VLANs in the topology. Devices on VLAN 10 use the HSRP 10 Active router as a default gateway. Devices on VLAN 20 use the HSRP 20 Active router as a default gateway. All traffic from VLAN 20 is being forwarded across the Po1 interface to the default gateway. You want to ensure that devices on each VLAN send traffic to the appropriate default gateway by using the most direct path. In addition, you want to preserve the maximum amount of redundancy in the design. Which of the following could you do to fix the problem?

1. A. Configure DSW2 as the root bridge for all VLANs.
2. B. Configure DSW2 as the root bridge for VLAN 10.
3. C. Configure DSW2 as the root bridge for VLAN 20. — đáp án hiện tại
4. D. Disable the link between ASW3 and DSW1.
5. E. Disable the Po1 interface on DSW2.
6. F. Disable the link between ASW3 and DSW2.
