Câu 126: 300-210: CCNP Security Implementing Cisco Threat Control Solutions

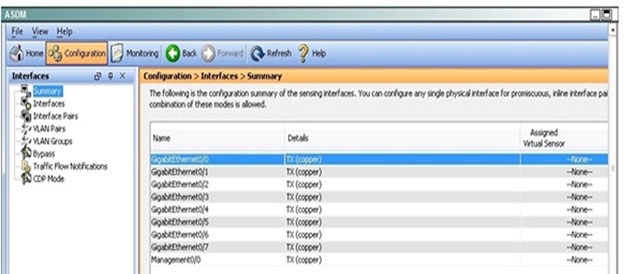

SIMULATION -Instructions:Click the grey buttons of this frame to view the different windows. Windows can be minimized and repositioned. You can also reposition a window by dragging it by the title bar.Scenario:You are a network security admin with the need to apply an aggressive policy to deny high and medium risk events against traffic to and from a high value network segment, placing the IPS inline using two interfaces. GigabitEthernet0/0 & GigabitEthernet0/1. You also have a requirement to further analyze lower risk events across that same network segment by capturing traffic for later inspection.

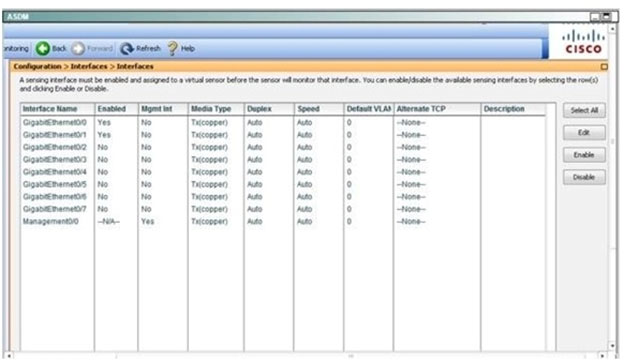

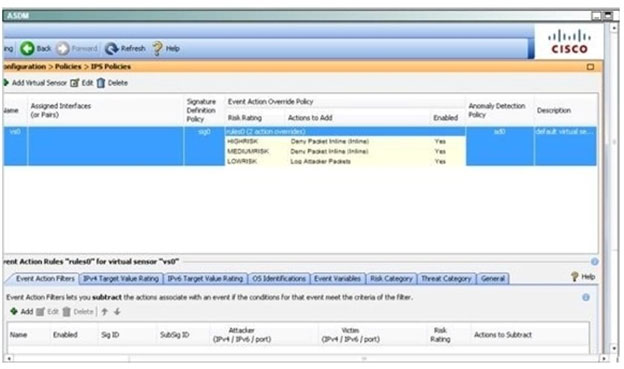

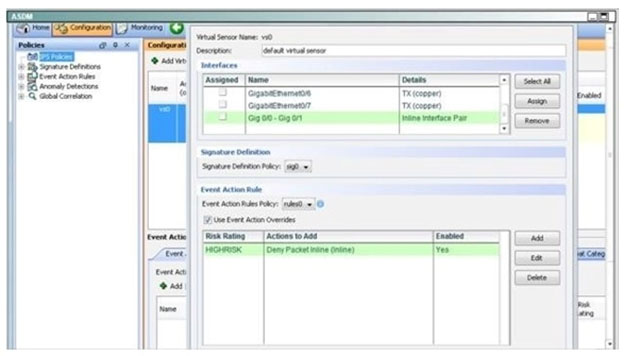

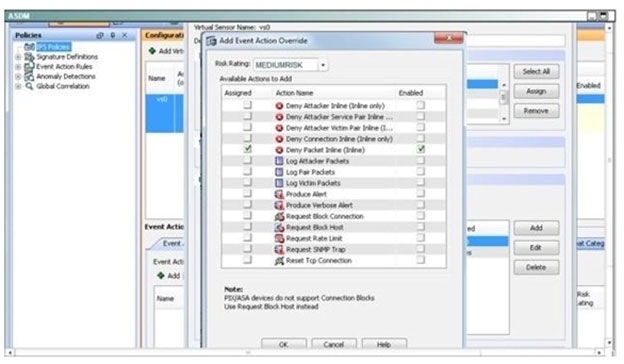

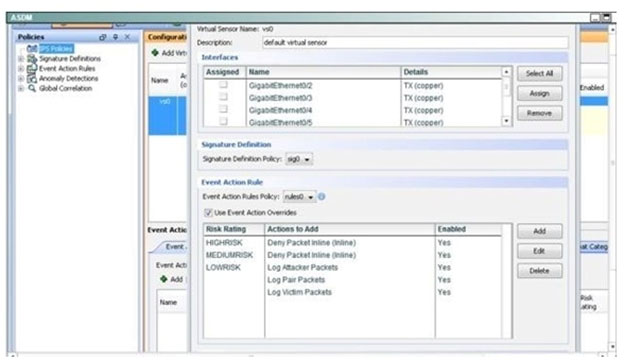

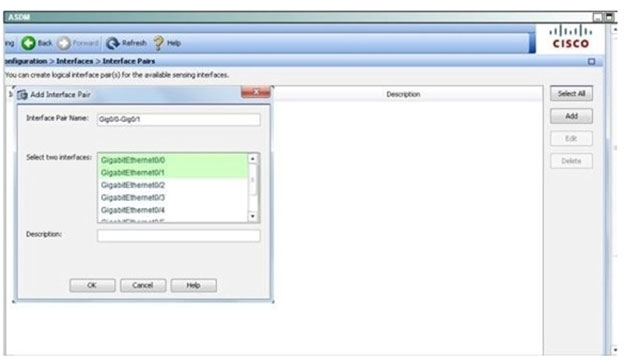

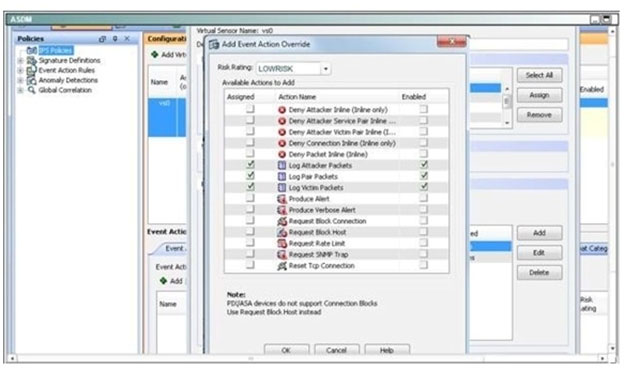

1. A. See the solution below. Steps are in Explanation below: First, enable the Gig 0/0 and Gig 0/1 interfaces: Second, create the pair under the "interface pairs" tab: Then, apply the HIGHRISK action rule to the newly created interface pair: Then apply the same for the MEDIUMRISK traffic (deny attacker inline) Finally. Log the packets for the LOWRICK event: When done it should look like this: — đáp án hiện tại
