Câu 60: 300-410: Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)

Refer to the exhibits. All the serial links between R1, R2, and R3 have the same bandwidth. Users on the 192.168.1.0/24 network report slow response times while they access resources on network 192.168.3.0/24. When a traceroute is run on the path, it shows that the packet is getting forwarded via R2 to R3 although the…

Nội dung câu hỏi

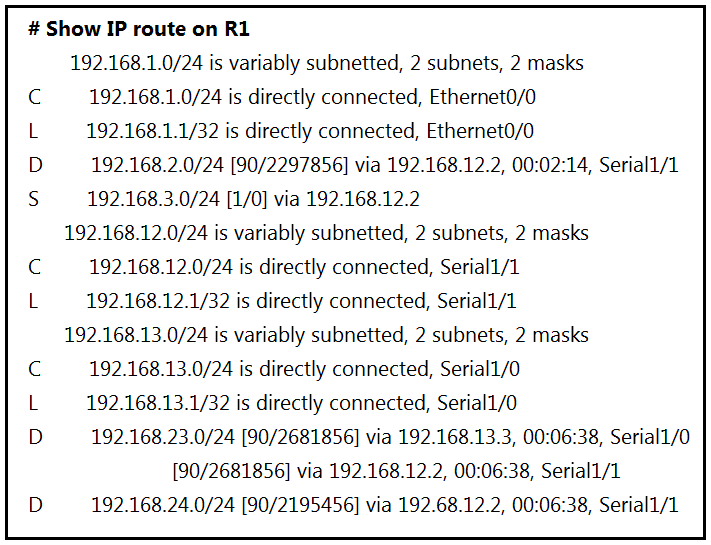

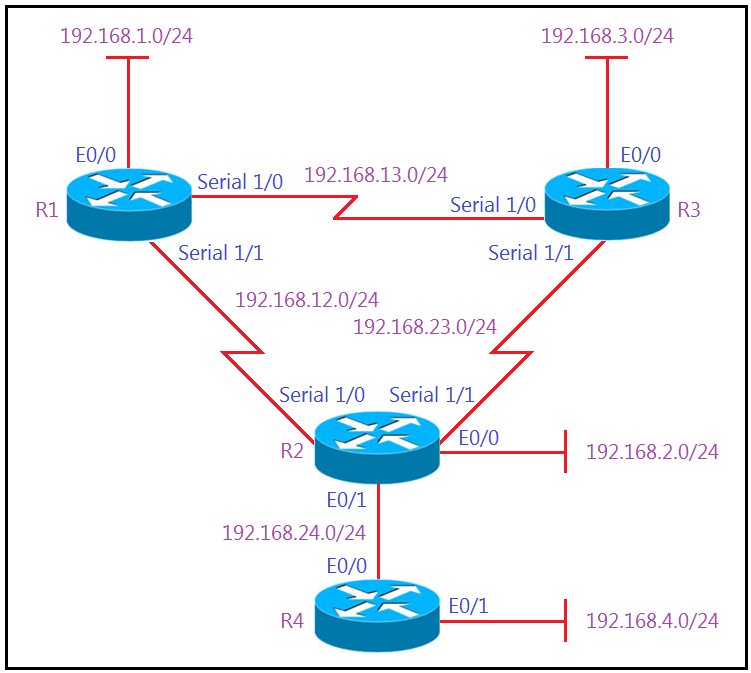

Refer to the exhibits. All the serial links between R1, R2, and R3 have the same bandwidth. Users on the 192.168.1.0/24 network report slow response times while they access resources on network 192.168.3.0/24. When a traceroute is run on the path, it shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator do to fix the slowness?

Minh họa câu hỏi Minh họa câu hỏi

Các lựa chọn

Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.

  1. A. Add a static route on R1 using the next hop of R3.
  2. B. Remove the static route on R1. — đáp án hiện tại
  3. C. Change the Administrative Distance of EIGRP to 5.
  4. D. Redistribute the R1 static route to EIGRP.
