Câu 39: 300-510: Implementing Cisco Service Provider Advanced Routing Solutions (SPRI)

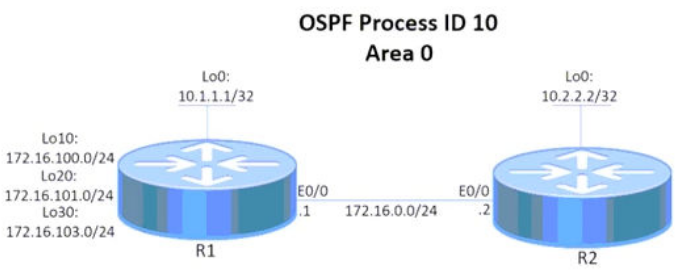

SIMULATION -Guidelines -This is a lab item in which tasks will be performed on virtual devices.• Refer to the Tasks tab to view the tasks for this lab item.• Refer to the Topology tab to access the device console(s) and perform the tasks.• Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.• All necessary preconfigurations have been applied.• Do not change the enable password or hostname for any device.• Save your configurations to NVRAM before moving to the next item.• Click Next at the bottom of the screen to submit this lab and move to the next question.• When Next is clicked, the lab doses and cannot be reopened. Topology - Tasks -Configure and verify an OSPF neighbor adjacency between R1 and R2 in OSPF area 0 according to the topology to achieve these goals:1. R1 pings the Loopback0 interface of R2. Use interface-level configuration to complete this task.2. R2 pings the Loopback0 interface of R1. Use interface-level configuration to complete this task.3. R2 receives a single summary route 172.16.100.0/22 for networks 172.16.100.0/24, 172.16.101.0/24, and 172.16.103.0/24.

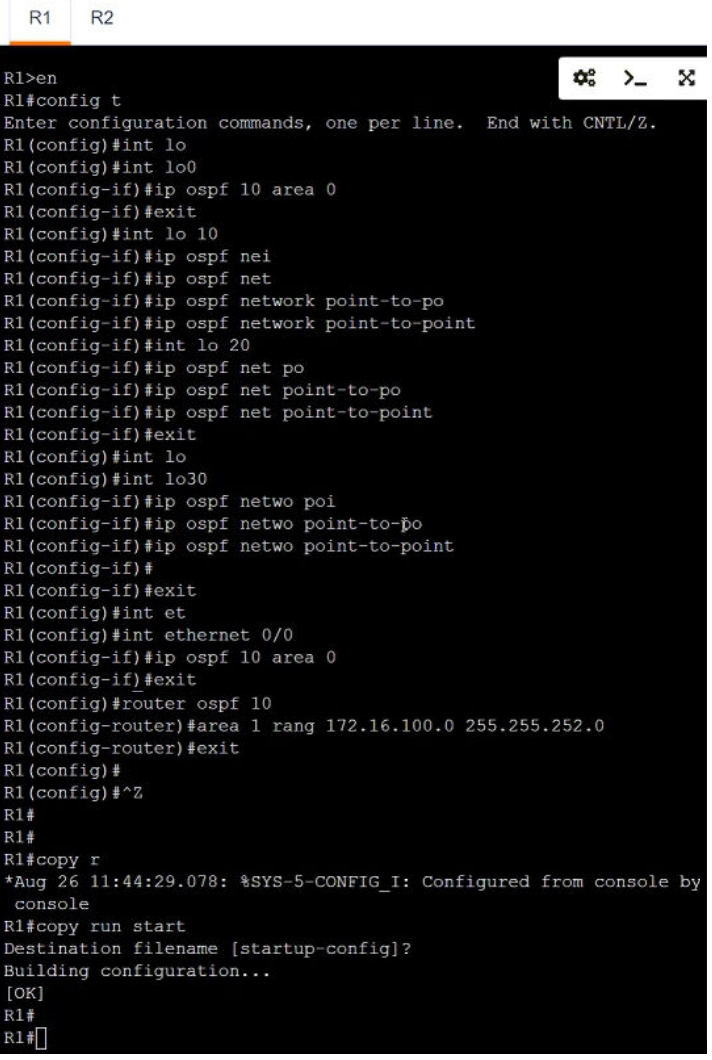

1. A. Lựa chọn A bằng hình ảnh — đáp án hiện tại
