Câu 72: 400-051: CCIE Collaboration Written

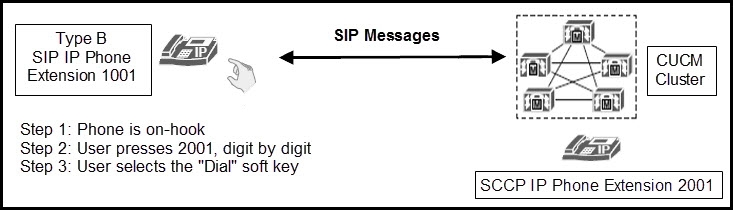

Refer to the exhibit. A user is going through a series of dialing steps on a SIP Type B IP phone (for example, a Cisco 7975) to call an SCCP IP phone. Both phones are registered to the same Cisco Unified Communications Manager cluster. Assuming the calling SIP phone is associated with a SIP Dial Rule with a pattern value of 2001, which statement about the call setup process of this call is true?

1. A. Each digit will arrive at Cisco Unified Communications Manager in a SIP NOTIFY message as a KPML event, and Cisco Unified Communications Manager will extend the call as soon as the collected digits match the extension of the SCCP IP phone, bypassing class of service configuration on both IP phones.
2. B. Each digit will arrive at Cisco Unified Communications Manager in a SIP NOTIFY message as a KPML event. When the collected digits match the extension of the SCCP IP phone, Cisco Unified Communications Manager will extend the call only if the class of service configuration on both phones permits this action.
3. C. As soon as the user selects the Dial softkey, the SIP IP phone will forward all digits to Cisco Unified Communications Manager in a SIP INVITE message. Cisco Unified Communications Manager will extend the call as soon as the collected digits match the extension of the SCCP IP phone, bypassing class of service configuration on both IP phones.
4. D. As soon as the user selects the Dial softkey, the SIP IP phone will forward all digits to Cisco Unified Communications Manager in a SIP INVITE message. Cisco Unified Communications Manager will extend the call only if class of service configuration on both phones permits this action. — đáp án hiện tại
5. E. The SIP IP phone will wait for the interdigit timer to expire, and then send all digits to Cisco Unified Communications Manager in a SIP INVITE message. Cisco Unified Communications Manager will extend the call as soon as the collected digits match the extension of the SCCP IP phone, bypassing class of service configuration on both IP phones.
