Câu 29: CV1-003: CompTIA Cloud+

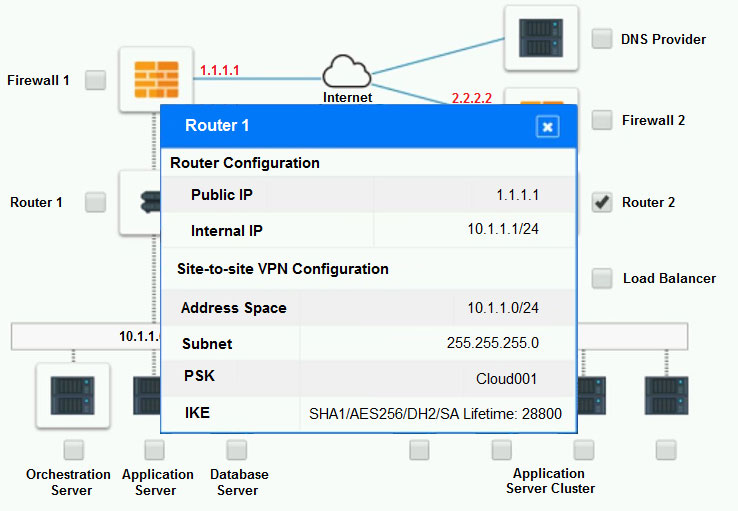

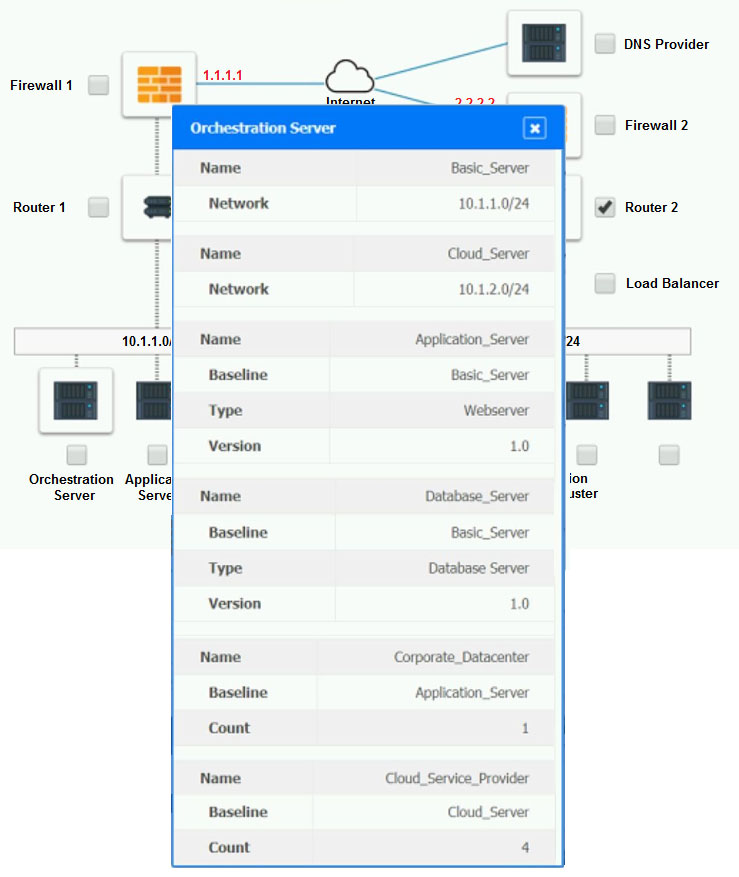

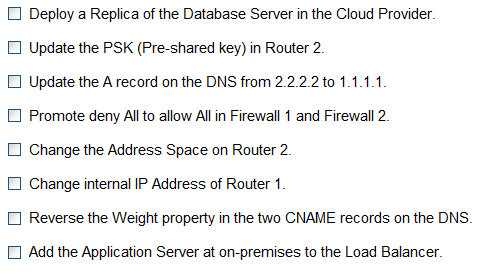

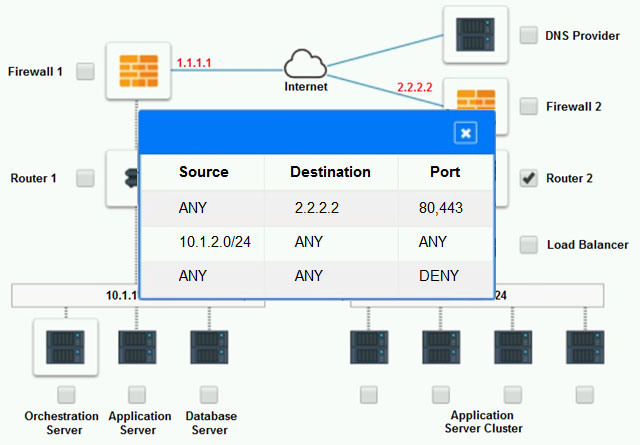

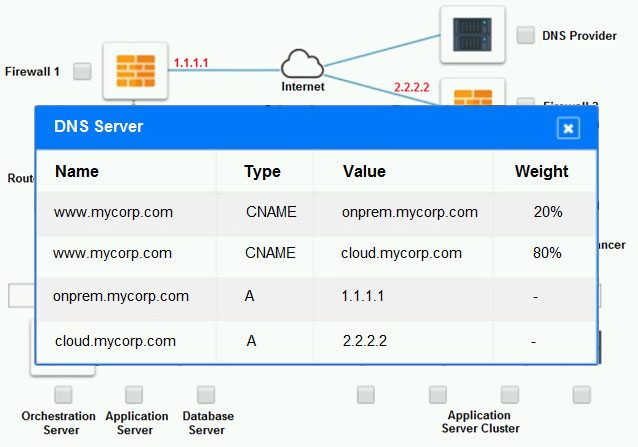

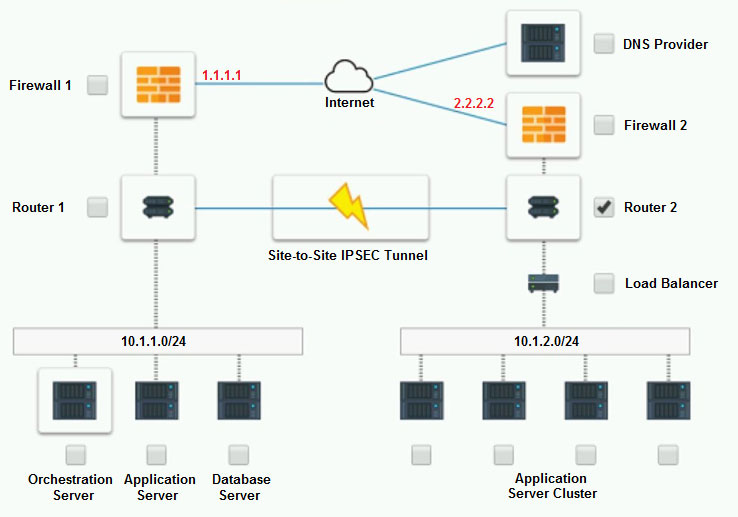

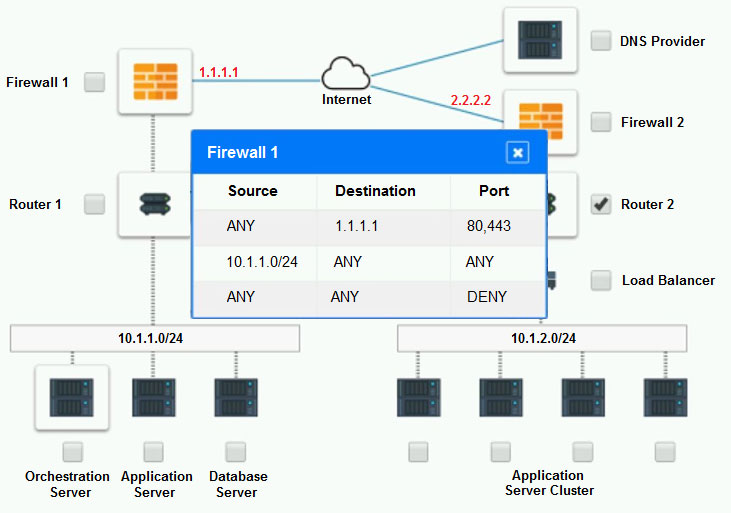

SIMULATION -A company has decided to scale its e-commerce application from its corporate datacenter to a commercial cloud provider to meet an anticipated increase in demand during an upcoming holiday. The majority of the application load takes place on the application server under normal conditions. For this reason, the company decides to deploy additional application servers into a commercial cloud provider using the on-premises orchestration engine that installs and configures common software and network configurations. The remote computing environment is connected to the on-premises datacenter via a site-to-site IPSec tunnel. The external DNS provider has been configured to use weighted round-robin routing to load balance connections from the Internet. During testing, the company discovers that only 20% of connections completed successfully. INSTRUCTIONS -Review the network architecture and supporting documents and fulfill these requirements:Part 1: ✑ Analyze the configuration of the following components: DNS, Firewall 1, Firewall 2, Router 1, Router 2, VPN and Orchestrator Server. ✑ Identify the problematic device(s). Part 2: ✑ Identify the correct options to provide adequate configuration for hybrid cloud architecture. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button. Part 1:Cloud Hybrid Network Diagram - Part 2:Only select a maximum of TWO options from the multiple choice question

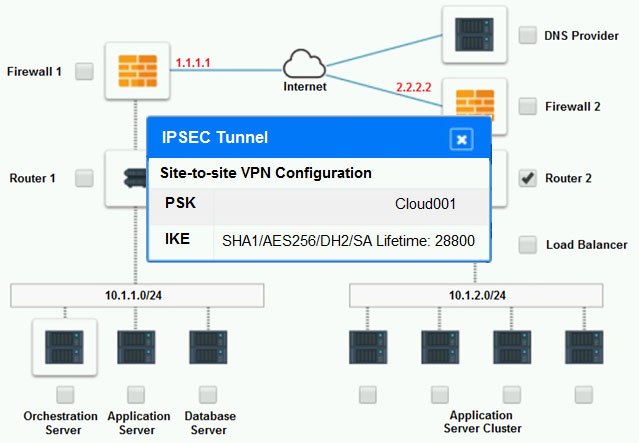

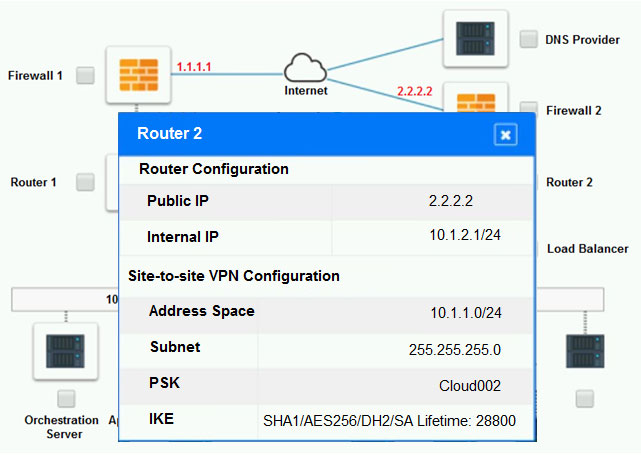

1. A. 1) Update the PSK(Pre-shared key in Router2): if the keys are not equals, you can't connect. As you can see in the picture, IPSEC Tunnel use PSK "Cloud001" 2) Change the address space on Router2, althrough when you make a site-to-site IPSec tunnel, you creaet a new address space. — đáp án hiện tại
