Câu 36: 101: Application Delivery Fundamentals

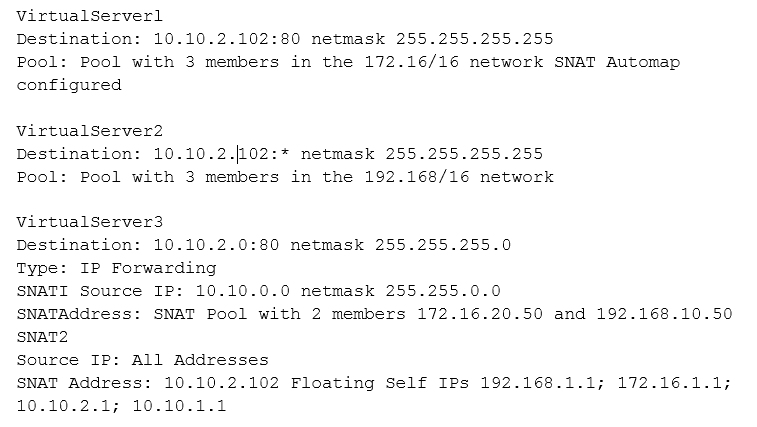

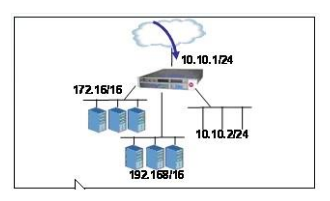

An LTM has the 3 virtual servers, 2 SNATs, four self IP addresses defined and the networks shown in the graphic below. Selected options for each object are shown below. Settings not shown are at their defaults. Assume port exhaustion has not been reached. A connection attempt is made with a source IP and port of 10.20.10.50:2222 and a destination IP and port of 10.10.2.102:80. When the request is processed, what will be the source and destination IP addresses?

1. A. Source IP: 10.20.10.50; Destination IP: pool member in the 172.16/16 network
2. B. Source IP: 172316.20.50; Destination IP: pool member in the 182.16/16 network
3. C. Source IP: 192.168.1.1; Destination IP: pool member in the 192.168/16 network
4. D. The request will be dropped.
5. E. Source IP: 10.20.10.50; Destination IP: pool member in the 192.168/16 network
6. F. Source IP: 182.16.1.1; Destination IP: pool member in the 172316/16 network — đáp án hiện tại
7. G. Source IP: 192.168.10.50; Destination IP: pool member in the 192.168/16 network
8. H. Source IP:192.168.10.50; Destination IP: pool member in the 192.168./16 network
