Câu 1: FCSS_LED_AR-7.6: Fortinet NSE 6 - LAN Edge 7.6 Architect

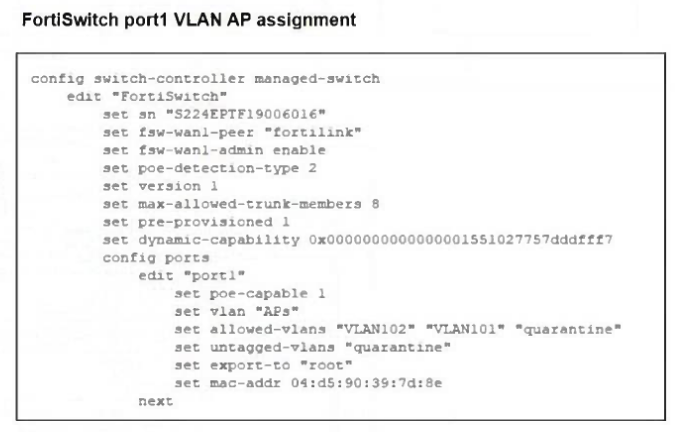

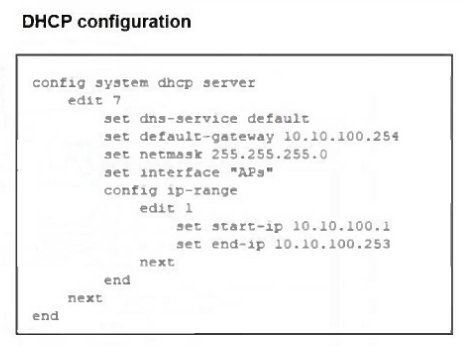

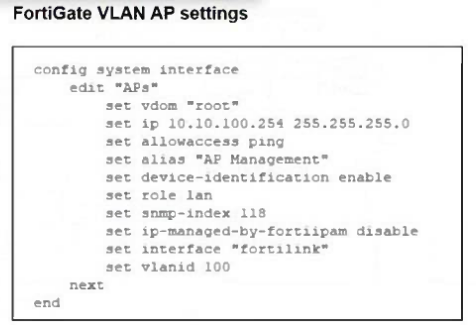

Refer to the exhibits. A FortiSwitch is successfully managed by FortiGate. FortiAP is connected to port1 of the managed FortiSwitch. On FortiGate, the VLAN AP is configured to detect and manage FortiAP, along with a DHCP server for the VLAN AP. Additionally, the VLAN AP is assigned to port1 of FortiSwitch.However, For…
Nội dung câu hỏi
Refer to the exhibits. A FortiSwitch is successfully managed by FortiGate. FortiAP is connected to port1 of the managed FortiSwitch. On FortiGate, the VLAN AP is configured to detect and manage FortiAP, along with a DHCP server for the VLAN AP. Additionally, the VLAN AP is assigned to port1 of FortiSwitch.However, FortiGate is unable to detect or manage FortiAP. Which FortiGate misconfiguration is preventing the detection of FortiAP?
Các lựa chọn
Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.
- A. The VLAN is not tagged correctly on the FortiSwitch uplink port.
- B. The FortiAP firmware is incompatible with the FortiGate firmware version.
- C. The CAPWAP ports (UDP 5246 and 5247) are not open on FortiGate.
- D. Security Fabric is disabled in the administrative access options of the VLAN. — đáp án hiện tại
