Câu 25: NSE4-5.4: Fortinet Network Security Expert - FortiOS 5.4

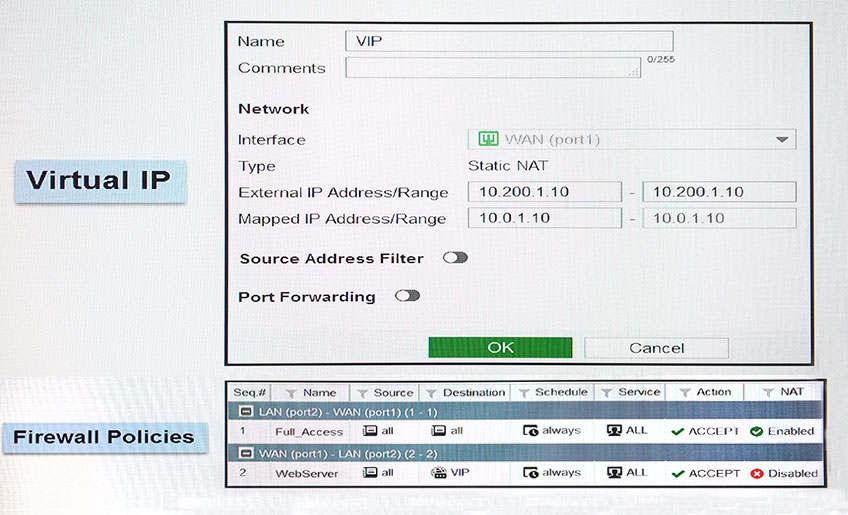

Examine the exhibit, which contains a virtual IP and a firewall policy configuration. The WAN(port1) interface has the IP address 10.200.1.1/24. The LAN(port2) interface has the IP address 10.0.1.254/24. The top firewall policy has NAT enabled using outgoing interface address. The second firewall policy configured with a virtual IP (VIP) as the destination address. Which IP address will be used to source NAT the Internet traffic coming from a workstation with the IP address 10.0.1.10/24?

1. A. 10.200.1.1
2. B. 10.0.1.254
3. C. Any available IP address in the WAN(port1) subnet 10.200.1.0/24
4. D. 10.200.1.10 — đáp án hiện tại
