Câu 152: NSE4-5.4: Fortinet Network Security Expert - FortiOS 5.4

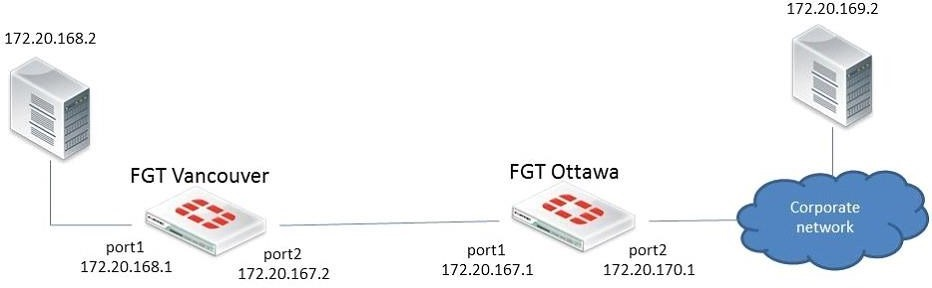

Examine the exhibit below; then answer the question following it. In this scenario, the FortiGate unit in Ottawa has the following routing table: Sniffer tests show that packets sent from the source IP address 172.20.168.2 to the destination IP address 172.20.169.2 are being dropped by the FortiGate located in Ottawa. Which of the following correctly describes the cause for the dropped packets?

1. A. The forward policy check.
2. B. The reverse path forwarding check. — đáp án hiện tại
3. C. The subnet 172.20.169.0/24 is NOT in the Ottawa FortiGate's routing table.
4. D. The destination workstation 172.20.169.2 does NOT have the subnet 172.20.168.0/24 in its routing table.
