Câu 24: NSE4_FGT-6.4: Fortinet NSE 4 - FortiOS 6.4

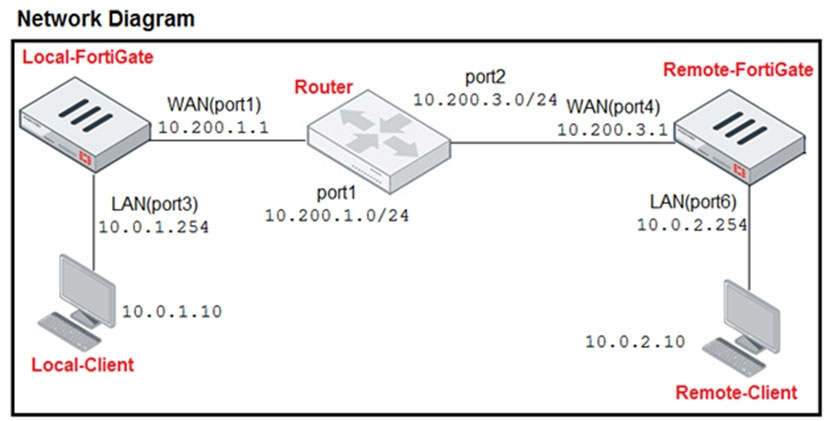

Refer to the exhibit. The exhibit contains a network diagram, central SNAT policy, and IP pool configuration. The WAN (port1) interface has the IP address 10.200.1.1/24. The LAN (port3) interface has the IP address 10.0.1.254/24. A firewall policy is configured to allow to destinations from LAN (port3) to WAN (port1).…
Nội dung câu hỏi

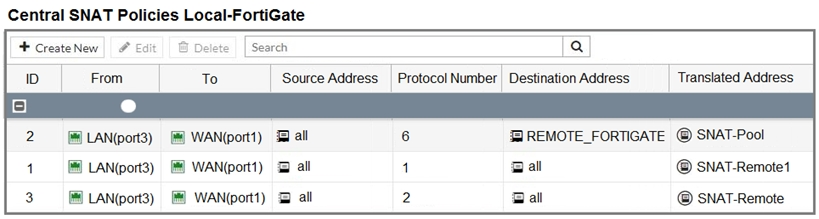

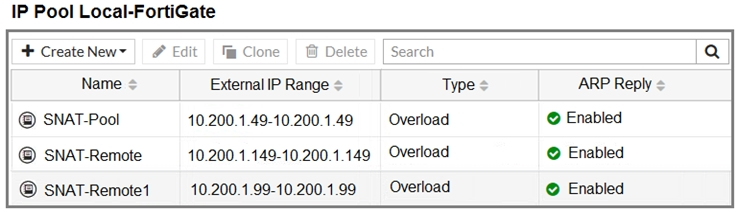

Refer to the exhibit. The exhibit contains a network diagram, central SNAT policy, and IP pool configuration. The WAN (port1) interface has the IP address 10.200.1.1/24. The LAN (port3) interface has the IP address 10.0.1.254/24. A firewall policy is configured to allow to destinations from LAN (port3) to WAN (port1). Central NAT is enabled, so NAT settings from matching Central SNAT policies will be applied. Which IP address will be used to source NAT the traffic, if the user on Local-Client (10.0.1.10) pings the IP address of Remote-FortiGate (10.200.3.1)?
Các lựa chọn
Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.
- A. 10.200.1.149
- B. 10.200.1.1
- C. 10.200.1.49
- D. 10.200.1.99 — đáp án hiện tại
