Câu 50: HPE6-A45: Implementing Aruba Campus Switching solutions

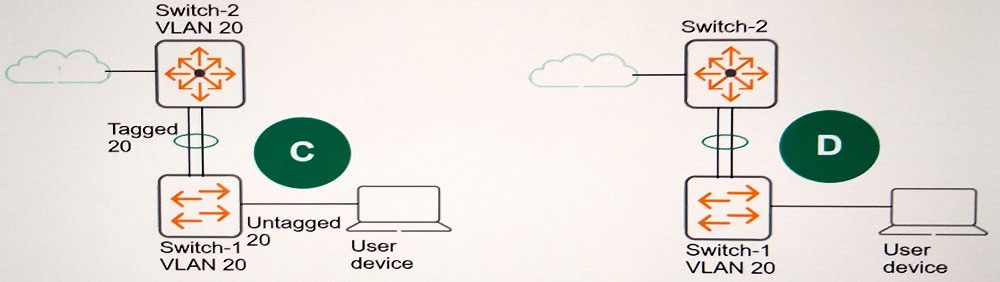

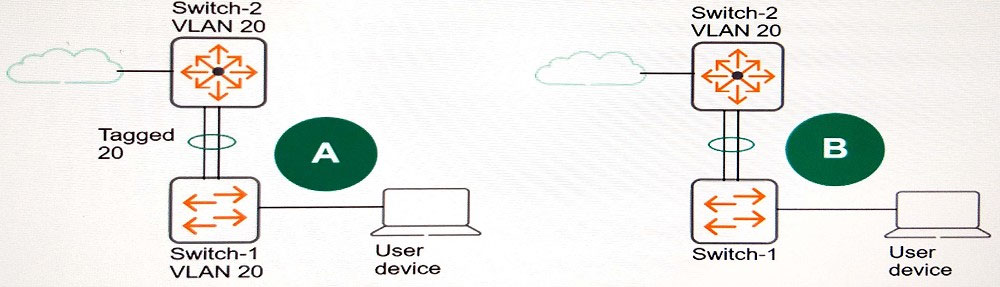

Refer to the exhibits. Exhibit 1 - Exhibit 2 - In the exhibits, VLAN 20 under a device name indicates that the device is configured with that VLAN. The exhibits also indicate whether VLAN 20 is statically configured on each link, either as an untagged or a tagged VLAN. If the link has no label, VLAN 20 is not statically configured on that link. A network administrator needs to deploy AOS-Switches at the access layer. They enforce 802.1X on edge ports. In the exhibits, Switch-1 represents the access layer switches. The plan calls for users to be dynamically assigned to VLAN 20 or VLAN 30, based on identity. If the RADIUS server authorizes the user but does not assign a VLAN, the user should be assigned to VLAN 30. Switch-2 is the default router for the user VLANs. Which exhibit shows the correct plan for VLAN 20 in the wired infrastructure?

1. A. A
2. B. B
3. C. C — đáp án hiện tại
4. D. D
