Câu 24: HPE6-A73: Aruba Certified Switching Professional

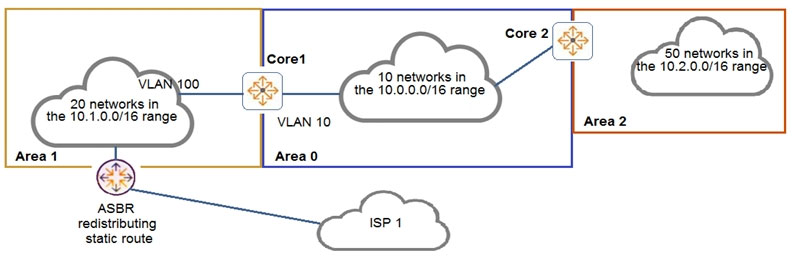

Examine the network topology. The network is configured for OSPF with the following attributes: ✑ Core1 and Core2 and ABRs ✑ Area 1 has 20 networks in the 10.1.0.0/16 range ✑ Area 0 has 10 networks in the 10.0.0.0/16 range ✑ Area 2 has 50 networks in the 10.2.0.0/16 range ✑ The ASBR is importing a static route into Area 1 ✑ Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-areaHere is the OSPF configuration performed on Core1: Based on the above information, what is correct?

1. A. Area 0 has 13 routes
2. B. Core1 has no OSPF routes — đáp án hiện tại
3. C. Core1 has received one LSA Type 5 from the ASBR
4. D. Area 1 has 23 routes
