Câu 3: HPE7-A07: HPE Campus Access Mobility Expert

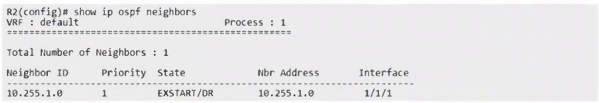

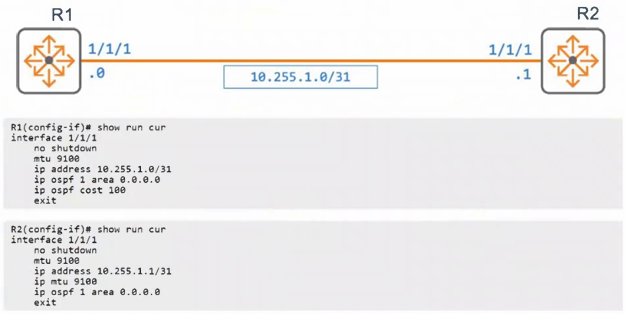

Refer to the exhibits. An engineer has applied the above configuration to R1 and R2. However, the router's OSPF adjacency never progresses past the "EXSTART/DR" state as shown below. Which configuration action on either router will allow R1 and R2 to progress past the "EXSTART/DR" state?
Nội dung câu hỏi
Refer to the exhibits. An engineer has applied the above configuration to R1 and R2. However, the router's OSPF adjacency never progresses past the "EXSTART/DR" state as shown below. Which configuration action on either router will allow R1 and R2 to progress past the "EXSTART/DR" state?
Các lựa chọn
Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.
- A. Remove the layer 3 MTU configuration.
- B. Ensure the OSPF process is not configured with passive-interface default
- C. Change the IP address and mask applied to interface 1/1/1
- D. Change R1 and R2 to a network type of point-to-point. — đáp án hiện tại
