Câu 23: H12-811-V2-0: HCIA-Datacom V2.0

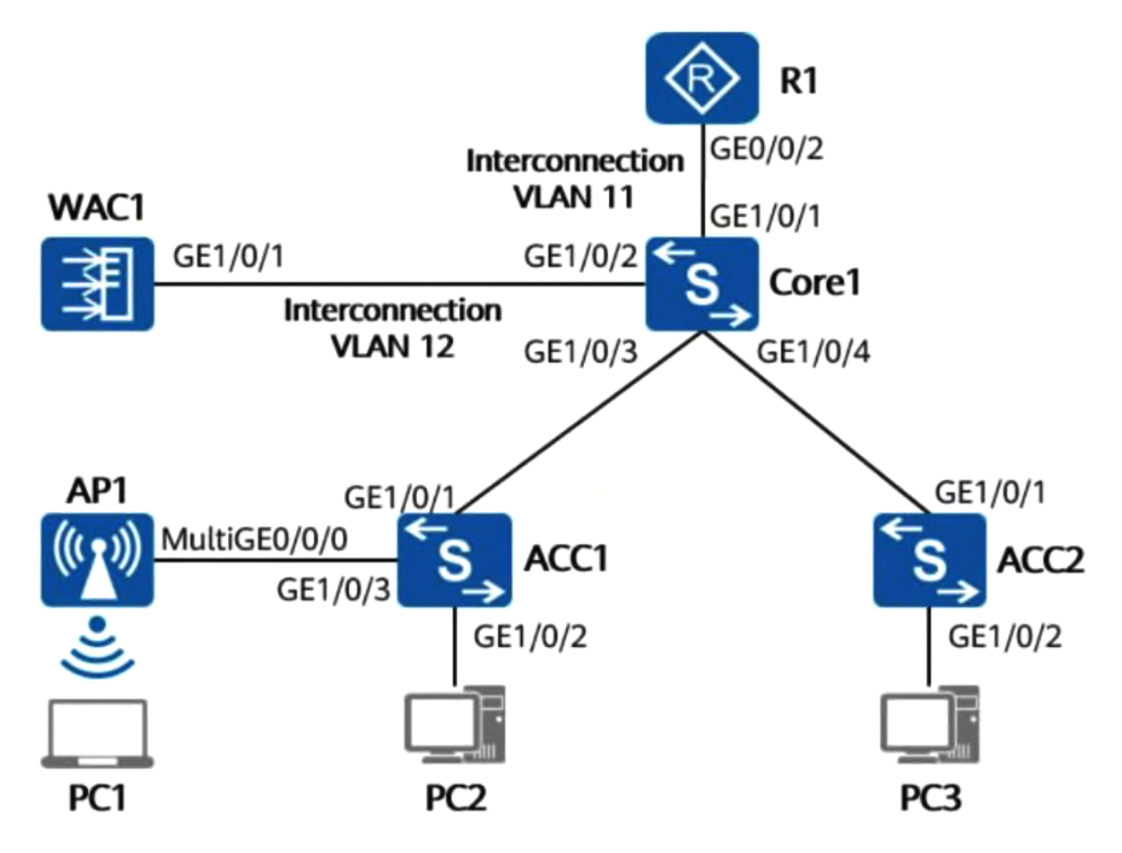

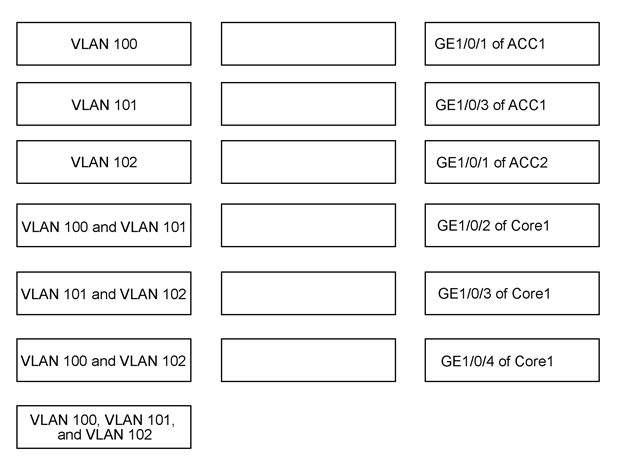

DRAG DROP -On the campus network shown in the figure below, the core switch Core1 functions as a Layer 3 gateway and as a DHCP server to dynamically assign IP addresses to AP1, PC1, PC2, and PC3. The network below Core1 is a Layer 2 network. WAC1 and R1 are connected to Core1 at Layer 3. AP1 goes online through VLAN 100. VLAN 101 and VLAN 102 are respectively used for the wireless and wired services. Additionally, the tunnel forwarding mode is used for wireless traffic forwarding. Match device interfaces with their respective allowed VLANs. (Note: No additional VLANs are allowed on device interfaces, and interconnection VLANs are not considered.)

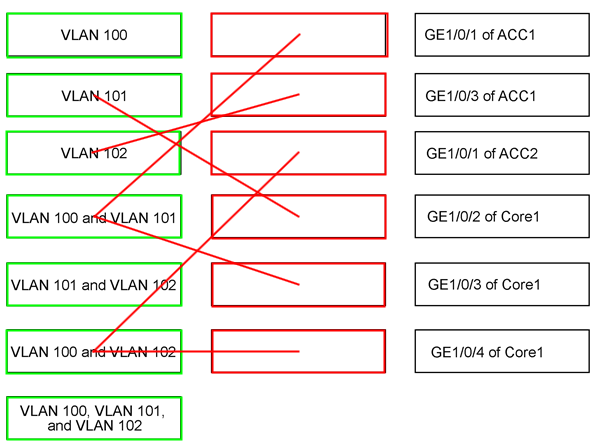

1. A. Lựa chọn A bằng hình ảnh — đáp án hiện tại
