Question 53: H12-811-V2-0: HCIA-Datacom V2.0

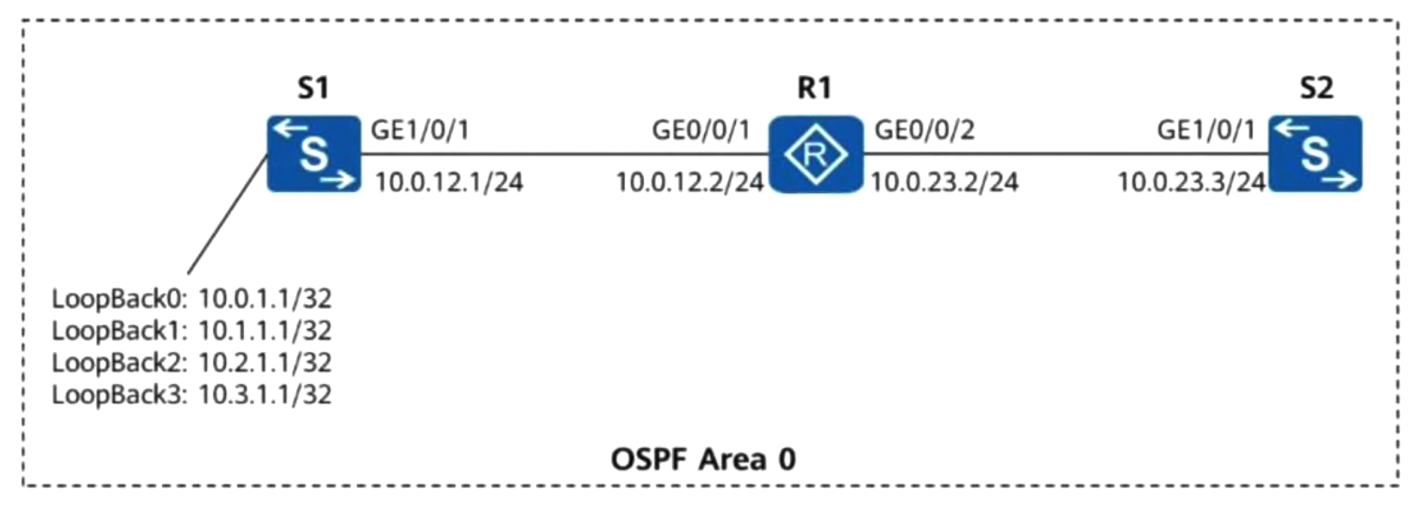

On the OSPF network shown in the figure, all IP addresses can communicate with each other. Then the following configurations are added on R1:[R1] acl 3000[R1-acl4-advance-3000] rule deny ip source 10.0.1.1 0.0.0.0[R1-acl4-advance-3000] rule deny ip source 10.1.1.1 0.0.0.0[R1-acl4-advance-3000] rule deny ip source 10.3.1.1 0.0.0.0[R1-acl4-advance-3000] rule permit ip[R1-acl4-advance-3000] quit[R1] traffic classifier test[R1-classifier-test] if-match acl 3000[R1-classifier-test] quit[R1] traffic behavior test[R1-behavior-test] permit[R1-behavior-test] quit[R1] traffic policy test[R1-trafficpolicy-test] classifier test behavior test[R1-trafficpolicy-test] quit[R1] interface GE 0/0/1[R1-GE0/0/1] traffic-policy test inbound[R1-GE0/0/1] quitWhich IP address of S1 can successfully ping 10.0.23.3?

1. A. 10.1.1.1
2. B. 10.0.1.1
3. C. 10.3.1.1
4. D. 10.2.1.1 — đáp án hiện tại
