Câu 12: H12-811-V2-0: HCIA-Datacom V2.0

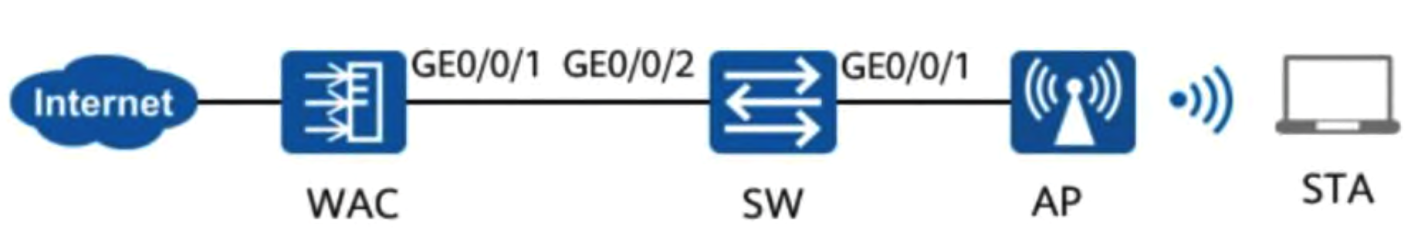

On a small WLAN shown in the figure, the WAC acts as a DHCP server to assign IP addresses to APs and STAs. The management VLAN is 100, the service VLAN is 110, and the user data forwarding mode is tunnel forwarding. Which of the following is the correct configuration for the switch and WAC interfaces?
Nội dung câu hỏi
On a small WLAN shown in the figure, the WAC acts as a DHCP server to assign IP addresses to APs and STAs. The management VLAN is 100, the service VLAN is 110, and the user data forwarding mode is tunnel forwarding. Which of the following is the correct configuration for the switch and WAC interfaces?
Các lựa chọn
Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.
- A. [SW] interface gigabitethernet 0/0/1[SW-GigabitEthernet0/0/1] port link-type trunk[SW-GigabitEthernet0/0/1] port trunk pvid 100[SW-GigabitEthernet0/0/1] port trunk allow-pass vlan 100 110[SW-GigabitEthernet0/0/1] quit[SW] interface gigabitethernet 0/0/2[SW-GigabitEthernet0/0/2] port link-type trunk[SW-GigabitEthernet0/0/2] port trunk allow-pass vlan 110[WAC] interface gigabitethernet 0/0/1[WAC-GigabitEthernet0/0/1] port link-type trunk[WAC-GigabitEthernet0/0/1] port trunk allow-pass vlan 110
- B. [SW] interface gigabitethernet 0/0/1[SW-GigabitEthernet0/0/1] port link-type trunk[SW-GigabitEthernet0/0/1] port trunk pvid 100[SW-GigabitEthernet0/0/1] port trunk allow-pass vlan 100[SW-GigabitEthernet0/0/1] quit[SW] interface gigabitethernet 0/0/2[SW-GigabitEthernet0/0/2] port link-type trunk[SW-GigabitEthernet0/0/2] port trunk allow-pass vlan 100[WAC] interface gigabitethernet 0/0/1[WAC-GigabitEthernet0/0/1] port link-type trunk[WAC-GigabitEthernet0/0/1] port trunk allow-pass vlan 100 — đáp án hiện tại
- C. [SW] interface gigabitethernet 0/0/1[SW-GigabitEthernet0/0/1] port link-type trunk[SW-GigabitEthernet0/0/1] port trunk pvid 110[SW-GigabitEthernet0/0/1] port trunk allow-pass vlan 100 110[SW-GigabitEthernet0/0/1] quit[SW] interface gigabitethernet 0/0/2[SW-GigabitEthernet0/0/2] port link-type trunk[SW-GigabitEthernet0/0/2] port trunk allow-pass vlan 100[WAC] interface gigabitethernet 0/0/1[WAC-GigabitEthernet0/0/1] port link-type trunk[WAC-GigabitEthernet0/0/1] port trunk allow-pass vlan 100
- D. [SW] interface gigabitethernet 0/0/1[SW-GigabitEthernet0/0/1] port link-type trunk[SW-GigabitEthernet0/0/1] port trunk pvid 110[SW-GigabitEthernet0/0/1] port trunk allow-pass vlan 100 110[SW-GigabitEthernet0/0/1] quit[SW] interface gigabitethernet 0/0/2[SW-GigabitEthernet0/0/2] port link-type trunk[SW-GigabitEthernet0/0/2] port trunk allow-pass vlan 100 110[WAC] interface gigabitethernet 0/0/1[WAC-GigabitEthernet0/0/1] port link-type trunk[WAC-GigabitEthernet0/0/1] port trunk allow-pass vlan 100 110
