Câu 70: H12-821: HCIP-Datacom-Core Technology V1.0

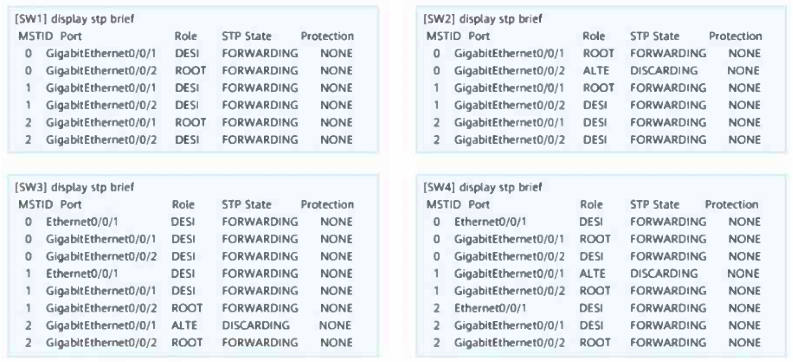

On an MSTP network, multiple MSTIs are created on four switches to implement load balancing. After the configuration is complete, the display stp brief command is run on the four switches. The figure shows the command outputs. Which of the following statements is true about the network?
Nội dung câu hỏi
On an MSTP network, multiple MSTIs are created on four switches to implement load balancing. After the configuration is complete, the display stp brief command is run on the four switches. The figure shows the command outputs. Which of the following statements is true about the network?
Các lựa chọn
Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.
- A. Ethernet0/0/1 on SW3 is an edge port.
- B. SW1 is the root bridge of MSTI 1.
- C. Three MSTIs are created.
- D. GigabitEthernet0/0/2 on SW2 cannot forward data. — đáp án hiện tại
