Câu 3: 4A0-112: Nokia IS-IS Routing Protocol
Routers R1 through R4 are running an IGP in such a way that they have each other’s system IP addresses in their routing tables. A static route is configured on router R1 so that it can reach subnetwork 10.4.100.0/24. The network administrator decides to use an indirect static route, as shown in the diagram. However, p…
Nội dung câu hỏi

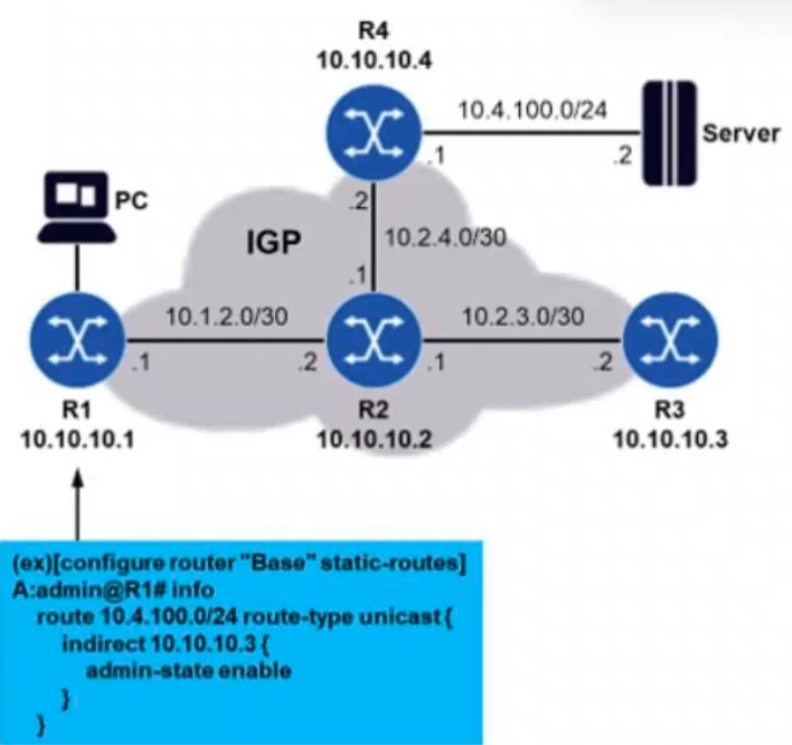

Routers R1 through R4 are running an IGP in such a way that they have each other’s system IP addresses in their routing tables. A static route is configured on router R1 so that it can reach subnetwork 10.4.100.0/24. The network administrator decides to use an indirect static route, as shown in the diagram. However, pinging the server from router R1 fails. What may be the problem in this case?
Các lựa chọn
Đáp án được giữ gọn theo nhãn A, B, C, D trong phần bình chọn tương tác.
- A. Router R1 drops the echo request because address 10.10.10.3 does not belong to an adjacent router.
- B. Router R2 drops the echo request because it does not have subnet 10.4.100.0/24 in its routing table.
- C. Router R3 drops the echo request because it does not have subnet 10.4.100.0/24 in its routing table.
- D. The echo request arrives at the server but there is no path for the echo response to return to router R1. — đáp án hiện tại
