Câu 13: S90.09: SOA Design Architecture Lab (S90-09A)

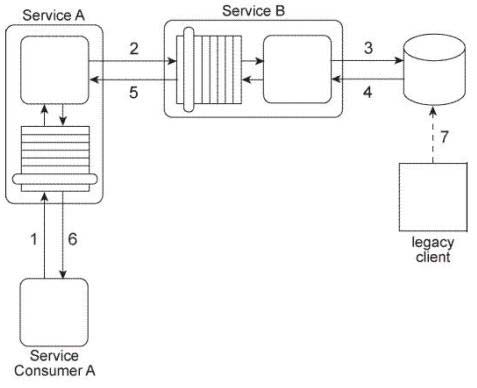

Service A is an entity service that provides a Get capability that returns a data value that is frequently changed. Service Consumer A invokes Service A in order to request this data value (1). For Service A to carry out this request, it must invoke Service B (2), a utility service that interacts (3.4) with the database in which the data value is stored, Regardless of whether the data value changed. Service B returns the latest value to ServiceA (5), and Service A returns the latest value to Service Consumer A (6). The data value is changed when the legacy client program updates the database (7). When this change happens is not predictable. Note also that Service A andService B are not always available at the same time. Any time the data value changes. Service Consumer A needs to receive it as soon as possible. Therefore, Service Consumer A initiates the message exchange shown in the Figure several times a day. When it receives the same data value as before, the response from Service A is ignored. When Service A provides an updated data value, Service Consumer A can process it to carry out its task. Because Service A and Service B are not always available at the same times, messages are getting lost and several invocation attempts by Service Consumer A fail. What steps can be taken to solve this problem?

1. A. The Asynchronous Queuing pattern can be applied so that messaging queues are established between Service A and Service B and between Service Consumer A and Service A . This way, messages are never lost due to the unavailability of Service A or Service B . — đáp án hiện tại
2. B. The Asynchronous Queuing pattern can be applied so that a messaging queue is established between Service A and Service B . This way, messages are never lost due to the unavailability of Service A or Service B . The Service Agent pattern can be further applied to establish a service agent that makes a log entry and issues a notification when re-transmission attempts by the messaging queue exceeds a pre-determined quantity.
3. C. The Asynchronous Queuing pattern can be applied so that a messaging queue is established between Service Consumer A and Service A. This way, messages are never lost due to the unavailability of Service A or Service B. The Service Agent pattern can be further applied to establish a service agent that makes a log entry each time a runtime exception occurs.
4. D. None of the above.
